Quick Details

  • Products Status: Used
  • Type: Industrial Monitor
  • Brand Name: Navipro
  • Model Number: TK-P080-S
  • Place of Origin: Beijing, China (Mainland)
  • Type:: industrial panel pc
  • CPU :: Intel Atom N2800
  • Chipset :: Intel NM10
  • Disk :: SSD 32G
  • USB:: 2*USB2.0
  • Com Port :: 1*RS232 1*RS485/232
  • Resolution:: 4096X4096
  • Working temperature :: 0~60℃
  • Vibration :: 50 ~ 500Hz , 1.5G.0.15mm
  • Origin of place :: China

Packaging & Delivery

Packaging Details industrial computer package is standard carton package , dimension : 100x30x30cm , 6pcs /carton
Delivery Time 3 days after confirm industrial computer order

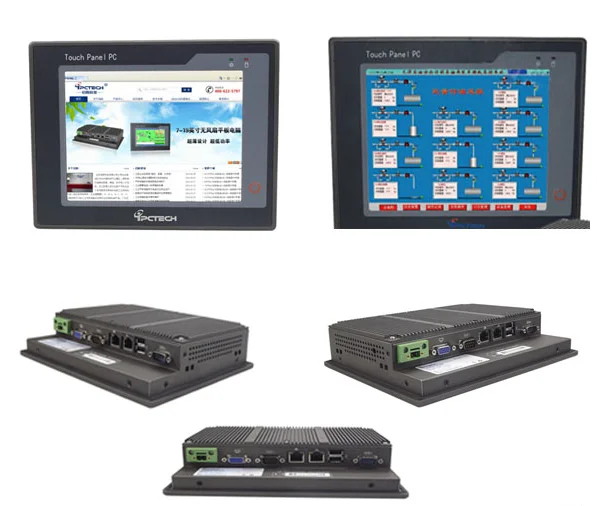

 P080S Industrial Touch Screen 8 Inch Panel PC


Product Description

System parameters  CPU                  Atom N2600 dual-core 1.6Hz low-power processor (3W), 533MHz front side bus
ChipsetIntel® NM10
DiskSATA 2.5"SSD,HDD and DOM

Intel GMA950 224MB ( Shared memory, dual

 display support )

I / O Interface     Network Port 2*RJ-45
Audio RTL ALC883 ,
USB 2*USB2.0
Com Port 2* DB-9  ,  1 * RS-232 ,  1 * RS232/485
 LED ScreenDisplay 8”VGA TFT LED
Resolution  800x600
Brightness 350cd/m2
Contract Ratio 600:1
Max Colors 16M
Display Area 164.5X124.5mm
Response  8ms
Pixel Distance  0.297x0.297
View Angle  (H)160/(V)160
Touch Screen        Type  5 line resistant
Resolution  4096X4096
Life time  250g ,35 million times
Response  <5ms
Surface Hardness  3H
Light Transmittance  >81%
Stroke Life 250g, 5 million times
High Temperature Test  85℃/1000hrs
Constant Temperature And Humidity test  85℃/90%RH/1000hrs
 Agencies Parameters        Panel Box

 Panel molding process using aluminum-magnesium alloy, magnesium alloy shell with overall

 heat the entire surface machining.

 Panel molding process using aluminum-magnesium alloy, magnesium alloy shell with overall

 heat the entire surface machining.

 Installation Panel embedded, with bracket VESA mounting
 Power 12/24V
 Color Black
 Weight 3KG
 Panel Dimension 230X180X51mm
 Carton Dimension 213X167X46mm
 Hole Size 215X169mm
Environment Working Temperature 0~60℃
Parameters  Storage Temperature -20~70℃
 Humidity 0~95%@40℃
 Vibration 50 ~ 500Hz , 1.5G.0.15mm
 Impact 10G(11ms)
