Electronics digital and analog output soil temperature moisture meter

FOB Reference Price:Get Latest Price
US $95-105 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview

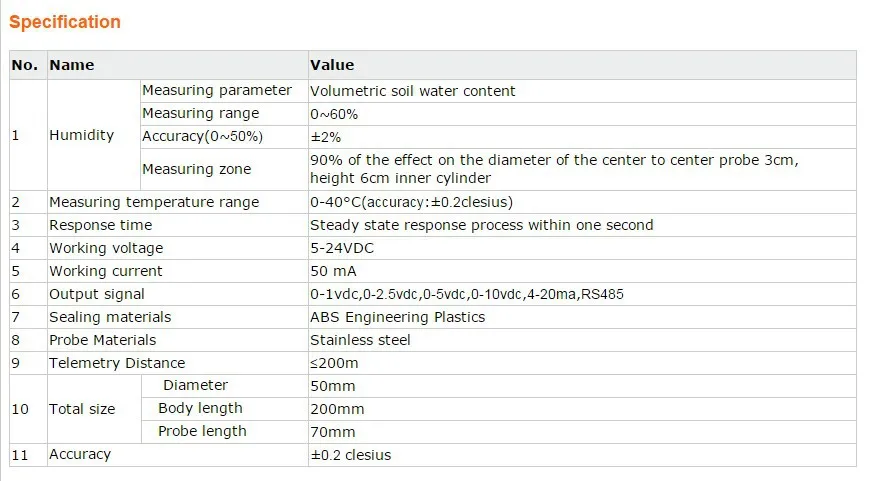

Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Navipro
Model Number:
DS200 soil moisture meter
Diameter:
50mm
Telemetry Distance:
≤200m
Probe Materials:
Stainless steel
Temperature Accuracy:
±0.2℃
Sealing materials:
ABS Engineering Plastics
Working current:
50 mA
Output signal:
0-1vdc,0-2.5vdc,0-5vdc,0-10vdc,4-20ma,RS485
Measuring temperature range:
0-40℃
Working voltage:
5-24VDC
Type:
Soil moisture meter
Supply Ability
Supply Ability:
1000 Unit/Units per Week
Packaging & Delivery
Packaging Details
soil ph moisture meter standard carton package
Port
Beijing

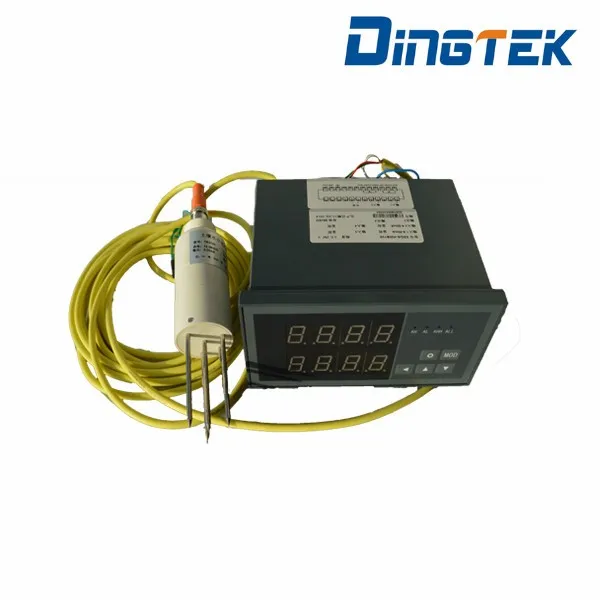

Electronics digital and analog output soil temperature moisture meter



Product Description





DS200 Digital analog output soil temperature electronics soil ph moisture meter





Overview

DS200 type soil moisture sensor have the features of high stability, easy operate and maintenance , etc.
It can measure the soil moisture content and temperature simultaneously , calibrated through digital
single-chip microcomputer which have analog and digital output, with high measuring precision, good quality.
We select ABS engineering plastics as sealing material in order to ensure the strength and support life .
TR - 3100 type sealing with the protection rank of IP68, which make it can be used into the soil for a
long time, protect them from corrosion. auto temperature sensor oem auto temperature sensor oem



 Electronics digital and analog output soil temperature moisture meter



Feature

soil ph moisture meter

  •  High stability, easy installation and maintenance operations, ABS plastic.
  •  Sealing, buried in the soil for long-term use, from corrosion.
  •  Soil moisture sensor output signals using a standard current loop transmission technology to anti-interference ability, transmission distance, high accuracy, fast response.
  •  High accuracy, wide range, variety of materials can be measured more, and faster response speed can be used to automate online monitoring

Priciple

soil ph moisture meter



DS200 type auto temperature sensor oem applying crystal oscillator produces high frequency signal, and transferred to the parallel metal probe, produce the superposition of the sending signal and the returned signal ,which can measuring the soil moisture content through measure the amplitude of the signal .Due to the dielectric constant of water is much larger than normal material, so when the soil moisture content increases, the dielectric constant will increases , so it can measure the soil moisture according to the corresponding relationship between soil dielectric constant and the soil moisture .



soil ph moisture meter

Electronics digital and analog output soil temperature moisture meter



Electronics digital and analog output soil temperature moisture meter

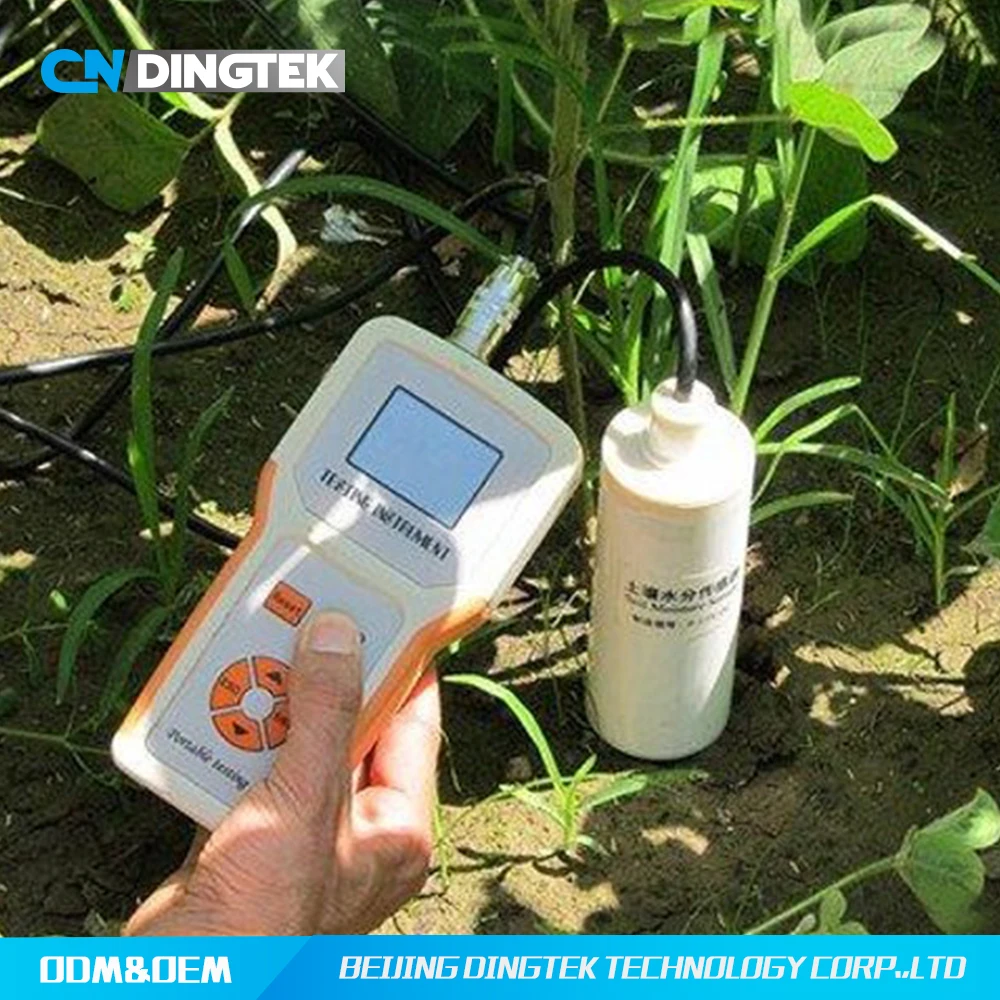

Application of the soil ph moisture meter

  •  Soil moisture sensors are widely used in agricultural irrigation systems, soil moisture monitoring, hydrological monitoring and other aspects of water conservation, and the number of mining and its long distance transmission equipment which may constitute a telemetry system.
  •  For example, when the soil is arid, remote alarm system, while the control system automatically switch es the pump and valve control, to automate irrigation.
  •  When combined with some additional sensors, you can also calculate the evaporation of soil moisture and crop water needed parameters.

 Soil ph moisture meter ordering information

1)  Measuring media

wireless temperature and humidity sensor2)  Output signal

3)  Cable length

4)   Auto temperature sensor oem



Contact US

Electronics digital and analog output soil temperature moisture meter

Packaging & Shipping

Delivery : DHL / UPS / FedEx / EMS

Electronics digital and analog output soil temperature moisture meter



Related Products
Electronics digital and analog output soil temperature moisture meter





Warranty

      We warrants this quality product to be free of defects in material and workmanship for a period of one

year from the date of purchase. During the period, we will repair or replace the product at no charge for

parts or labor. But the shipment fee will be shared by the buyer (one party 50%).

     The time period of this warranty starts from the date of the original purchase and expires on the first

anniversary date of purchase.

      No express or implied warranty is made for any defects in this product which result from accident,

abuse, misuse, failure to operate the product in accordance with relevant instructions, neglect, immersion

in or exposure to chemicals or liquids, extremes of climate, fungus, excessive wear and tear/cosmetic

damage and defects resulting from other extraneous causes such as unauthorised disassembly, repair or

notification.

     This warranty shall not extend to any incidental or consequential damages arising from the purchase,

use or inability to use this product.

   The laws of some countries and some States thereof do not allow the limitation of incidental or consequential

 damages, so the above limitation or exclusion may apply to you.



Certification



Electronics digital and analog output soil temperature moisture meter

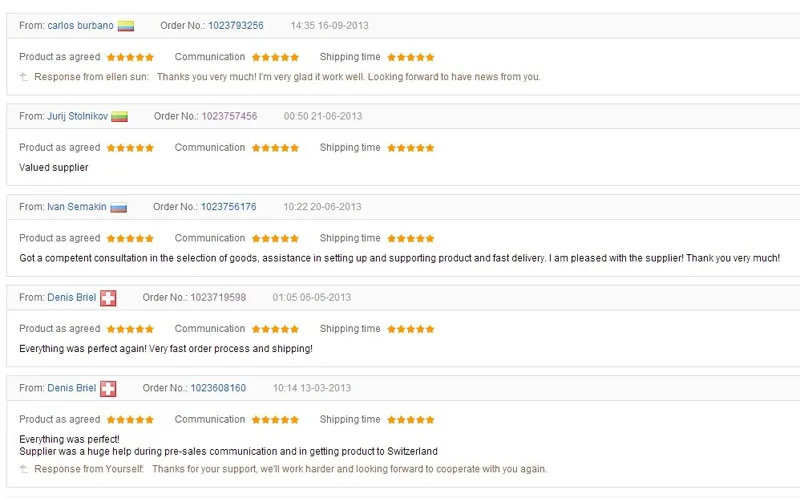

Feedback



Electronics digital and analog output soil temperature moisture meter

auto temperature sensor oem auto temperature sensor oem



Our Services

Our service

If you have any question about our products , please contace me. I will help you familiar with our products better.



  • Support 1 years warranty
  • The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
  • Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
  • Excellent package: each unit has individual box and all boxes are packed in standard packages.
  • OEM available.



Company Information

   Electronics digital and analog output soil temperature moisture meter

Company objective

Electronics digital and analog output soil temperature moisture meter

   Company division

Electronics digital and analog output soil temperature moisture meter

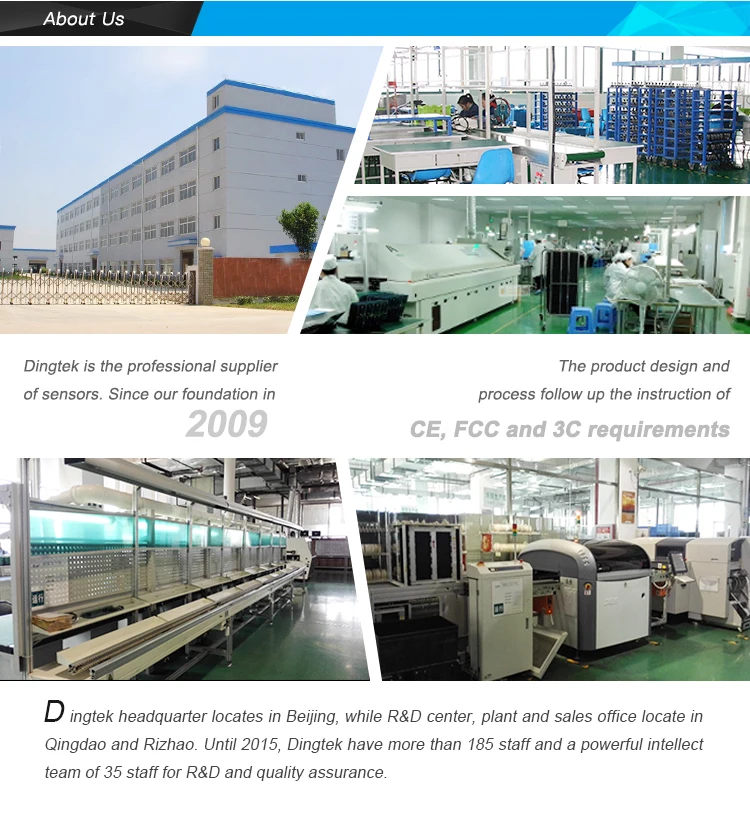

    Our team and factory
