DT300 humidity sensor analog and digital output 4-20ma output wireless WIFI Zigbee can bus room temperature and humidity meter

FOB Reference Price:Get Latest Price
US $45-50 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
NAVIPRO
Model Number:
DT300
Usage:
Indoor
Theory:
Temperature Sensor, Temperature and humidity meter
Accuracy:
±0.5℃, ±0.5℃, ±3%RH
Temperature range:
-55~+125℃
Temperature:
-55~+125℃
Humidity:
0%~100%
Power Supply:
10-32V DC
Output Signal:
RS485, CAN Bus, Zigbee, Wifi, GPRS
Protocol:
Modbus RTU/ Dingtek
Working Temperature:
-40 ~ 85℃
Protection Rank:
IP65
LED Display:
Optional
Supply Ability
Supply Ability:
100000 Unit/Units per Week
Packaging & Delivery
Packaging Details
temperature and humidity meter standard package
Port
Beijing

-



DT300 Digital wireless WIFI Zigbee CAN BUS room temperature and humidity meter



Product Description

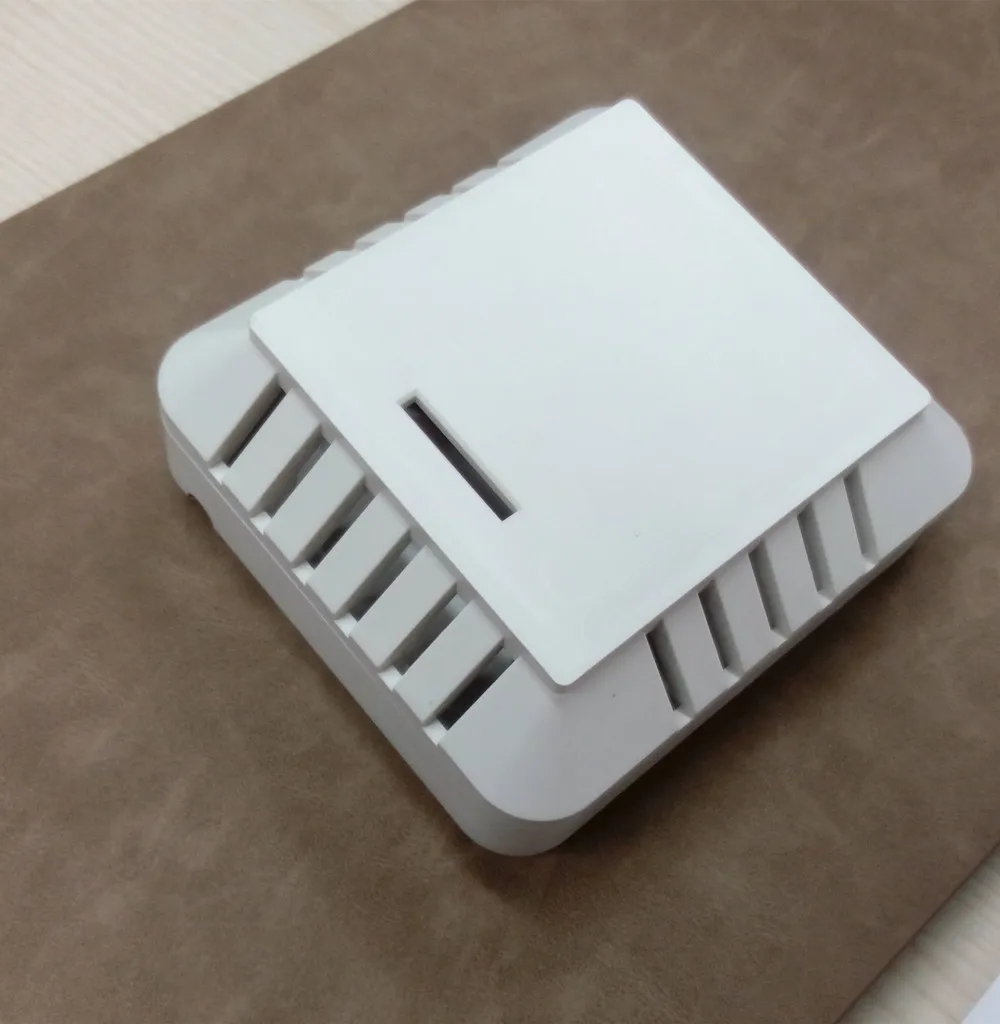

 Overview: temperature and humidity meter



The DT300 is one type of temperature and humidity meter which measure  the air temperature  and  humidity..

LED display and wireless version are optional, such as zigbee, wifi, and GPRS.

It is applicable for industry, home, agriculture remotely measurement and other application, such as IOT (Internet of Things).




Specification: temperature and humidity meter

Measurement Range

Temperature: -55~+125℃,

Humidity: 0%~100%

Accuracy

±0.5℃, ±3%RH

Power Supply

10-32V DC

Output Signal

Field Bus: RS485, CAN Bus

Wireless: Zigbee, Wifi, GPRS

Protocol

Modbus RTU/ Dingtek

Working Temperature

-40 ~ 85℃

Protection Rank

IP65

LED Display

Optional

Recharge Battery

Optional

Wireless

Optional

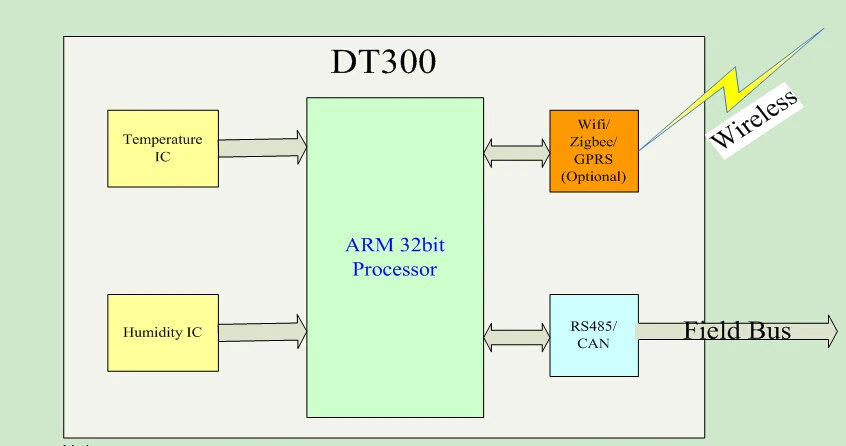

System Diagram:  temperature and humidity meter




Notes:

1. For field bus, CAN Bus, RS485 is optional.

2. For wireless, Wifi, zigbee, GPRS/3G is optional.

3. LED display is optional.



Interface Definition

Pin 1: Red Line: V+,

Pin 2: Blue Line: RS485 A+ (CAN +)

Pin 3: Black Line: GND

Pin 4: Yellow Line: RS485 B- (CAN-)





Protocol: temperature and humidity meter

1. Communication

Baud rate

9600

Data bit

8

Stop bit

1

Check sum

none





2. Request (from pc to sensor)



Section

Header

Command

ID

Content

Checksum

Tail

Bytes

1

2

2

0/6

2

2

Content

$ (0x24)











Remark



in caption

in ascii, 01~FF,

 in caption

for reading, it is 0.

For writing,

it is 6 bytes.

calculate sum from

header to content,

get low 8 bit,

then change to 2 ascii

0x0D 0A



3. Reply (from sensor to pc)

Section

Header

Command

ID

Content

Checksum

Tail

Bytes

1

2

2

6

2

2

Content

* (0x2A)











Remark



in caption,

see above

command list

in ascii, 01~FF,

in caption

replied value for

reading in mm or

L. OKOKOK for

successful setting.

NONONO for

failed setting

calculate sum from

header to content,

get low 8 bit, then

change to 2 ascii

0x0D 0A





Command list



Command list

RT

Read Temperature

RH

Read Humidity

SI

Set ID

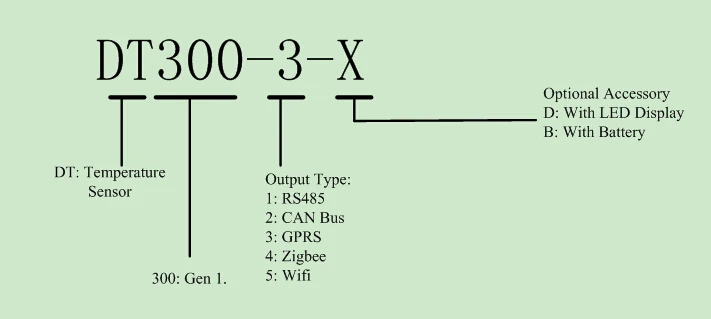

Model Naming Rules

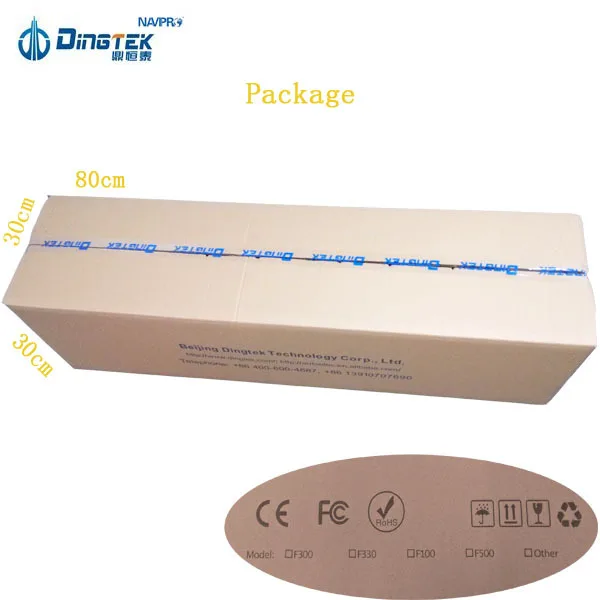

Packaging & Shipping

Standard package of the temperature and humidity meter

              80cm

_10





Delivery :Shipping via DHL/FedEx/TNT/EMS
