2018 DZ300 cement drum sensor, magnetic cement mixer rotation speed sensor for truck

FOB Reference Price:Get Latest Price
US $45-55 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
CNDingtek
Model Number:
DZ300
Usage:
Speed Sensor
Theory:
Hall Sensor
Output:
Digital Sensor, RS232/High/Low
Material:
Stainless Steel
Power:
10-32VDC
Wireless:
Optional with Wifi/Zigbee/GPRS/WCDMA
Dimension:
M30 * 60mm
Certificate:
CE RoHS
IP Level:
IP67
Warranty:
12 Months
Type:
Hall
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
standerd carton boxes
Port
Tianjin
Lead Time :
3-5days

 1_01

Product Description

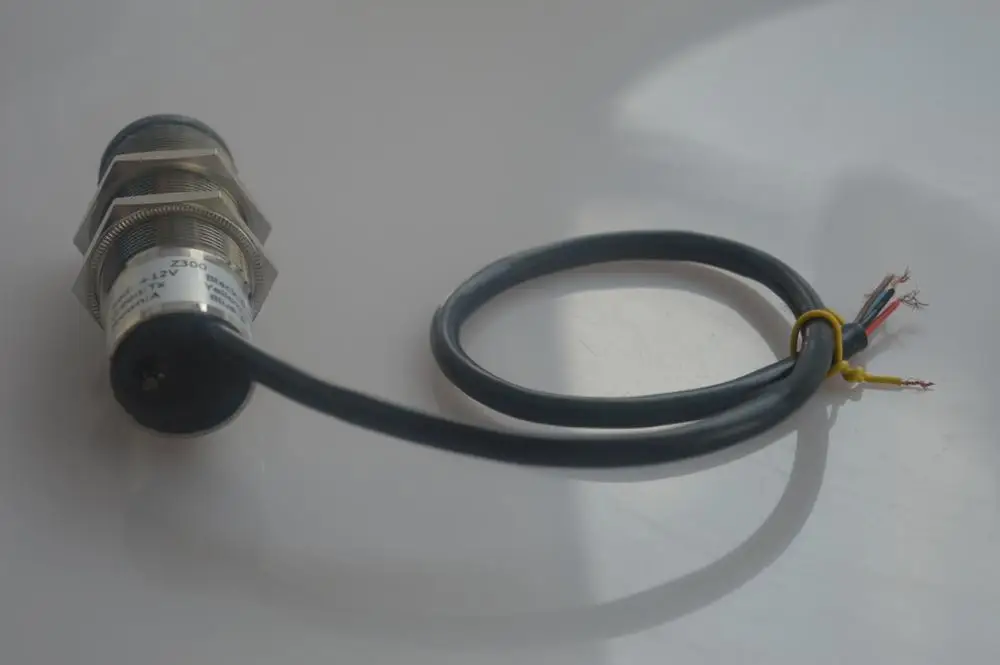

The DZ300 is one kind of magnetic (hall type) proximity sensors, which is specially designed for rotation speed and orientation detection.

It has RS232 output as well as high/low digital output. The RS232 output the rotation speed in rpm and orientation in specified protocol of Dingtek. The high/low digital line output high or low according to the different orientation.

It is applicable for rotation system, the speed of which is in 0-120 rpm. Especially it can be applied to status detection of mixing or discharging for the cement drum. Therefore, it can be used to detect if there is illegal discharging (output/unload) for the cement drum vehicle.





Specification

Output

RS232 and high/low digital line

Principle

Magnetic proximity detection

Power Supply

10-32V DC

Operating Temperature

-20 ~ +70℃

Working Temperature

-40 ~ +85℃

Shell Material

Sus 304

Protection Level

IP67

Current

<25mA

Wireless

Optional for zigbee, wifi, GPRS, UMTS.

Mechanical Drawing





Interface Definition





Application

1. Rotation speed and orientation detection.

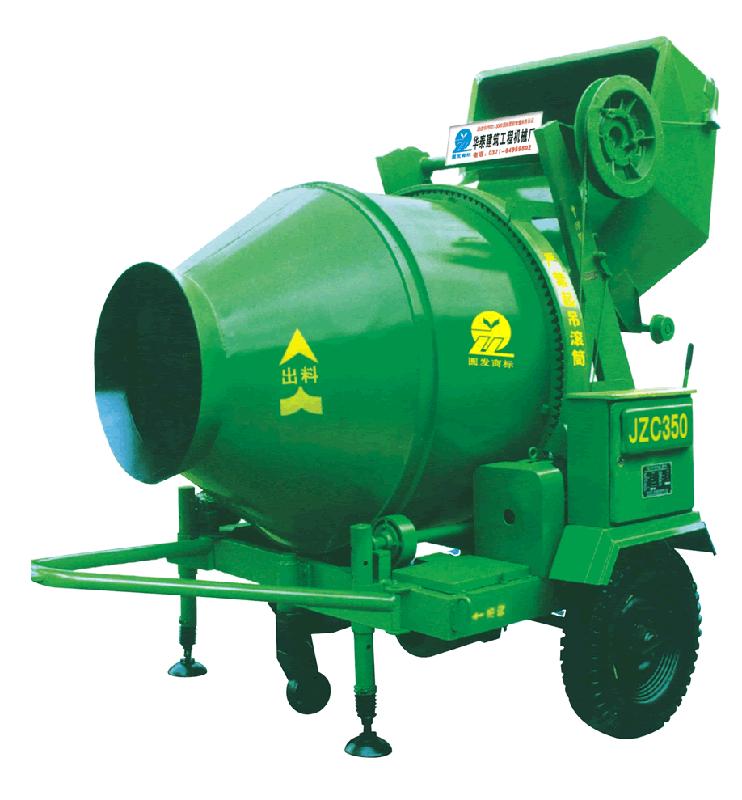

2. Status detection of mixing or discharging for the cement drum.
