Quick Details

  • Type: Gps Tracker
  • Use: Other
  • Place of Origin: Beijing, China (Mainland)
  • Brand Name: Dingtek
  • Model Number: K110
  • Warranty: 24 Months
  • Working Voltage: DC 9-36V
  • Working Current: Normally 33-40mA@12V Sleeping Mode 17-22mA@12V
  • Size: 88*50*18mm
  • Positioning mode: GPS
  • PositioningAccuracy: <10m
  • Communication Network: GPRS
  • Communication Mode: TCP/UDP
  • Working Temperature: -25 to +75 centigrade
  • Storage Temperature: -40 to +85 centigrade
  • Weight for a complete set: 95g

Packaging & Delivery

Packaging Details strong carton
Delivery Time Shipped in 14 days after payment

Product Description



1.  Parameter Diagram

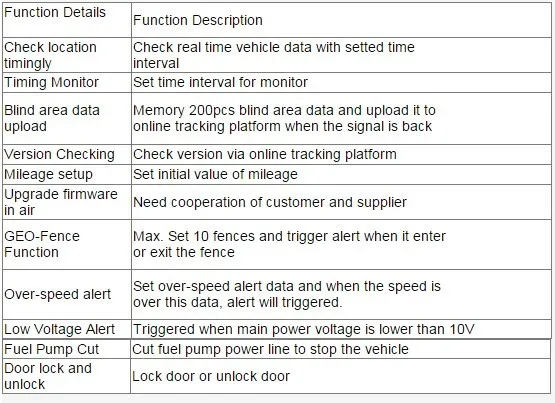

2. Functions



3 Setup and Operation
3.1 Unit Setup
(1) Check unit
Please check whether the equipment is in good appearance & whether accessories are completed.
(2) Set In SIM Card
Please press out the sim card slot and put SIM card in. Please not put sim card in or out when the
equipment is connecting power. And please make sure the SIM card have data service.
(3) Setup Position
A. Waterproof: Please set the equipment in dry surroundings, keep it away from air conditioner vents
to prevent condensation water inside of the main unit.
(4) connect to Car Main Power
Please connect the main unit to car main power according to the form before. Connect Red wire
to power “+” ---Car master positive power supply.
Black wire connect to Power “-” or grounding, but please ensure good conductivity of the
grounding place.
3.2 SMS Command for Online Tracking Setup
Exactly format is:
<SP*P:123456*T:111.111.111.111,1111*U: 111.111.111.111,1111*A:CMNET*N:130
00000000>
SP: is Header
P: Password (default password is: GPS)
T:111.111.111.111,1111 is TCP IP and Port
U:111.111.111.111,1111 is UDP IP and Port

A: CMNET is APN
N: 13000000000 is sim card number inside of the equipment.
3.3 Other SMS Command
 map
Check position, return one sms with google map link
position
Check position, return one sms with google map link
 ACC ON+xx
Set the interval of upload while ACC ON
 ACC OFF+xx
Set the interval of upload while ACC OFF
 restart
Restart the device.
3.4 LED Light

4 Wire Connection





FAQ

 5.FAQ


6 Attention


1. Away from water
2. Please keep the car battery fully charged
3. Device working current is 8-15V, recommended 12V. Tracker will damaged if the current is
higher than 15V.
4. Working temperature is -20 to 70 centigrade, Please cur off power if the temperature is over
this range.
5. When vehicle is in underground parks, tunnels or garage, maybe GPS signal will not very good.
Communication network blind area will be caused and cannot monitor vehicle. When the car is
out of that area, it will working good automatically.
6. Please not repair by yourself when the device not working properly.
8 After-sale service
1. One-year warranty. During this period, please feel free to connect us if there is any problem or
damage not caused by human factors.
2. Not maintenance: (1) client dismantled privately (2) force majeure (floods, accidents,etc.)
3. More than one year damage or faulty maintenance will need to pay for raw material
4. Before-sale, after-sale service for free.

Packaging & Shipping

7.Packing list
Main Unit               1pc
5-Pin Harness       1pc

5-Pin Connector    1pc



DHL/Fedex/TNT
