LoRaWAN NB-IoT GPRS Wireless Smart Waste Bin Sensor For Beautiful City Building

FOB Reference Price:Get Latest Price
$80.00 - $120.00 / Pieces | 1 Piece/Pieces (Min. Order)
Processing Capacity:
1
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
DingTek
Model Number:
DF702
Type:
Smart trash
After-sales Service Provided:
Online support
Warranty:
1 Year
Detection Range:
200cm (vertical)
Principle:
Ultrasonic
Power Supply:
Internal Battery, 2000mAh @ 7.4V Lithium
Operating Temperature:
-20 ~ +70℃
Storage Temperature:
-40 ~ +85℃
Shell Material:
ABS
Protection Level:
IP68
Wireless:
LoRa 433/868/915Mhz, 3km in view sight
Current:
<30mA 7.4V(uploading), <20ua 7.4V (sleep)
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packaging Details:
Standard packing with a crash resistant plastic film inside
Delivery Detail:
7DAYS
Port
BEIJING EXPORT
Video Description



Product Description

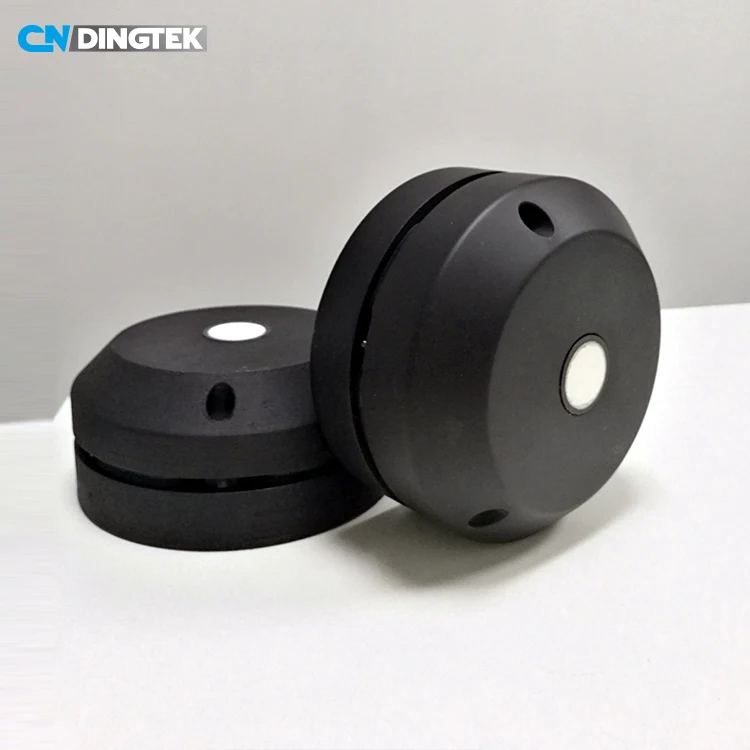

the DF702 sensor is designed for fill detection
especially for trash/garbage bin full/empty detection

The DF702 sensor is designed for waste bin (trash bin) status detection, especially for trash/garbage bin full/empty detection. It detect full/empty, flame risk, inclined (fall) or not and etc.

With LoRaWAN® module, it transmit the status via gateway to networks server and application server. User can monitor the status remotely. With the application software, user can assign the collector resource work plan and route plan. Analyze task performance and find out solution to improve. Finally the objective of high efficiency , good environment, and low cost are achieved. Furthermore it is optional with NB-IoT wireless module.
It is also optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia,New Zealand).
As it is with algorithm of low power consumption, the internal battery can work for more than 5 years (at 4 hours interval upload interval). And the IP68 level ensure the endurable working outdoor.



Cautions: For safety, the battery in standard version of this device is non- recharged type. If out of power, please do not recharge it, please replace with new battery from our company. What's more, the battery can not work for more than +85℃.

Detection Range 200cm (vertical)
Principle Ultrasonic
Power SupplyInternal Battery,2000mAh 7.4V Lithium
Operating Temperature-20~+70℃
Storage Temperature -40~+85℃
Shell Material ABS
Protection Level IP68
Current<30mA 7.4V(uploading),<20ua 7.4V(sleep)
Battery Life 2 years at 1 times full report per day
Dimension100*100*60mm
Net Weight 100g
WirelessLoRa 433/868/915MHZ,3Km in view sight

To realize the user needs, we developed GPRS version in 2018

With GPRS module, it transmit the status via cell phone network to networks server and application server. User can monitor the status remotely.With the application software, user can assign the collector resource work plan and route plan. Finally the objective of high efficiency and low cost are achieved.

It works for quad band frequency, 800/900/1800/1900Mhz. So it works worldwide.
As it is with algorithm of low power consumption, the internal battery can work for more than 1 years (per day two times uploading).

Comparing with the NB-IoT and LoRa versions,below is the different specification.

Network Diagram
Monitoring Software

Application



1)Trash bin full detection

2)Recycle bin full detection

Advantages
